Which length do I need?
- 3–6 ftReceiver to front speakers on the same console or shelf
- 10–15 ftCenter channel or front speakers across a TV wall
- 25–35 ftRear surrounds in a typical living room
- 50 ft +In-wall, ceiling or outdoor runs; consider a bulk spool
Tip: measure the path the wire will follow, not the straight line, and add 10–15% for slack.
The GEARit 16 AWG 4-Conductor In-Wall Speaker Wire is pure oxygen-free copper 16/4 cable with a CL2-rated jacket for safe in-wall and in-ceiling installation. Four color-coded conductors make it the right choice for bi-wiring and bi-amping, running two speakers from one cable, and whole-home audio and volume control wiring.
Features
- CL2 rated for in-wall installation: Meets fire safety requirements for runs inside walls and ceilings.

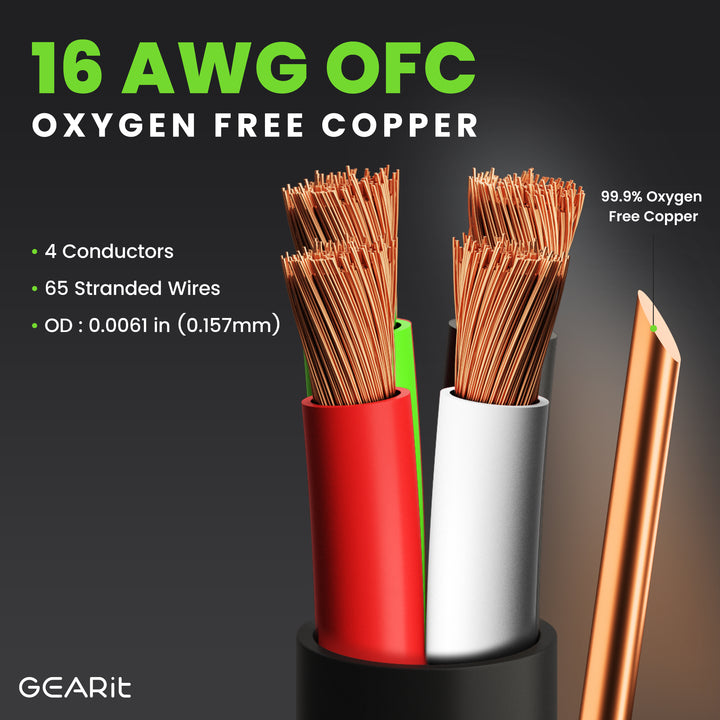

- 99.9% oxygen-free copper: Lower resistance than CCA wire for clear, detailed sound and better corrosion resistance.

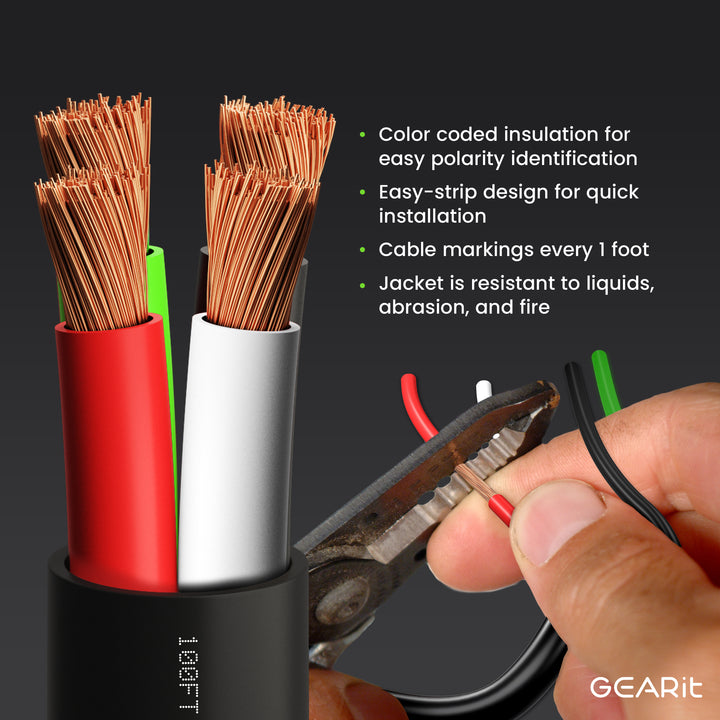

- 4 color-coded conductors: Clear polarity identification for bi-wire, bi-amp and multi-speaker installs.
- Sequential foot markings: Printed at 1 ft intervals so you can measure and cut accurately without a tape.
- Flexible PVC jacket: Pulls easily through walls and ceilings while protecting the conductors.

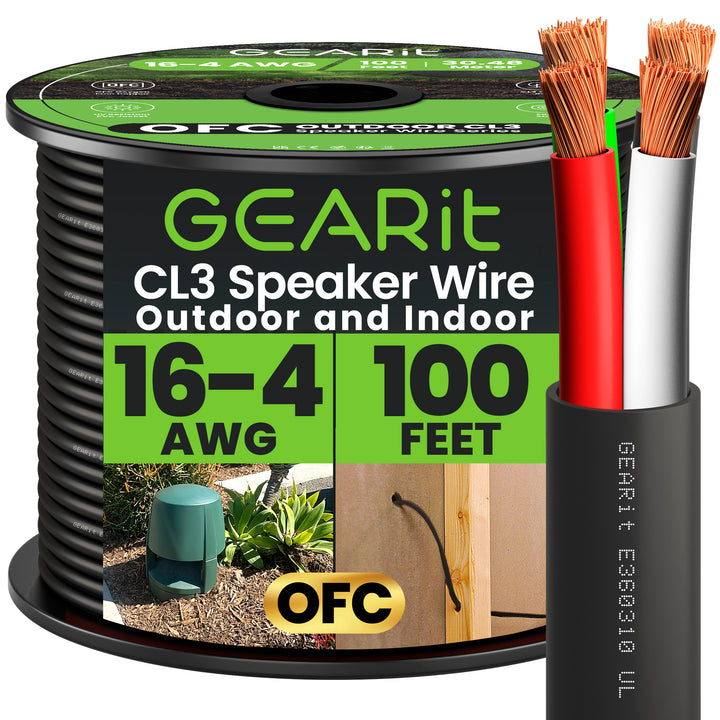

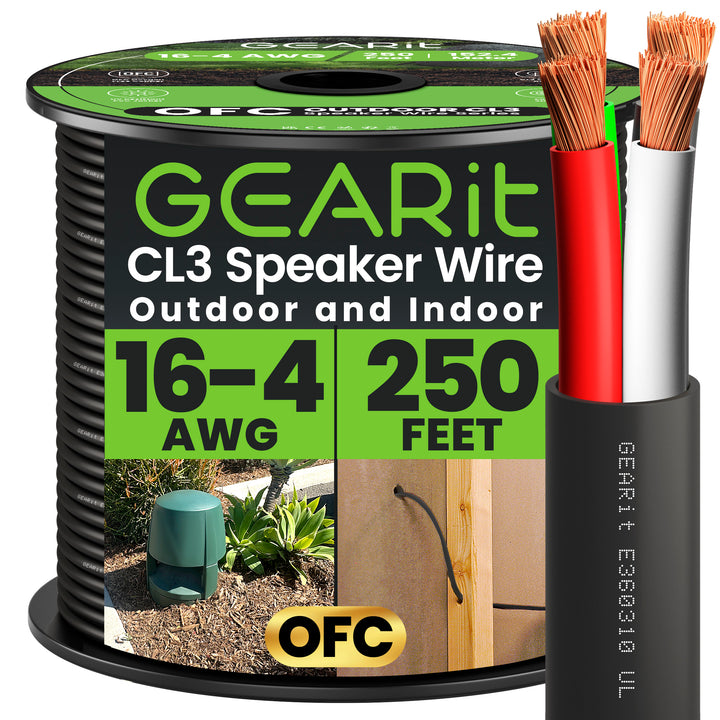

- Spool packaging: Easy dispensing, measuring and storage.
Why 4-Conductor?
Four-conductor wire carries two separate signal pairs in one jacket. Deliver the optimal amount of wattage to your home audio components begins by deciding the correct speaker wire conductor size. 4-conductor speaker wire is applied differently than 2-conductor speaker wire. Use it to:
- Bi-wire: Send separate runs to the high and low frequency terminals on speakers with dual binding posts. One for positive and negative like regular wires.
- Bi-amp: Drive the high and low sections of a speaker from separate amplifier channels. 4-conductor speaker wire has a higher threshold for power compared to 2-conductor speaker wire, which means less cross talk.
- Run two speakers: Feed a pair of in-ceiling or multi-room speakers from a single cable pull. 4-conductor speaker wire works when connecting a pair of speakers with one pair of connection if need be. It is also useful when running power from a receiver to a volume control. When doubled up, 4-conductor speaker wire has a higher effective gauge, which increases power delivery.
- Wire volume controls: Run from the receiver to an in-wall volume control and on to the speakers.
Is 16 AWG Right for You?
16 AWG works best for bookshelf speakers, rear surrounds and in-ceiling speakers on runs under 50 ft. For longer runs or higher-power amplifiers, step up to 14 AWG or 12 AWG.
CL2 is rated for indoor in-wall use. For outdoor or direct-burial runs, choose GEARit CL3 outdoor speaker wire.
![]() |
Ultra High Performance Clear, Rich and Detailed Sound
|
Audiophile Quality Speaker Cable
![]() |
![]() |
![]() |
|---|---|---|
Pure Copper and Oxygen Free
|
OFC vs CCA
|
Sequential Markings and Convenient Storage
|
![]() |
Choosing The Right Speaker WireAmerican Wire Gauge (AWG) refers to the thickness of the wire in the cable. The lower the gauge number, the thicker the wire. In order to choose the correct gauge speaker cable, the speaker impendence rating will need to be considered. Speaker impendence refers to the resistance a speaker offers to the current supplied by an amplifier. Impendence (like resistance) is measured in ohms, and choosing a wire that an amplifier or receiver can handle is important. An important consideration is that the wire gauge is suitable for the impedance of speakers and the wire length. Please follow the chart provided as a guideline to assist in finding the best gauge for your system’s performance. |
Specifications
- Gauge: 16 AWG
- Conductors: 4, color coded
- Conductor: 99.9% oxygen-free copper (OFC)
- Jacket: PVC, CL2 rated
- Lengths: 100 ft, 250 ft
- Color: White
- Use: Indoor, in-wall and in-ceiling
Backed by GEARit
Lifetime warranty and 30-day money-back guarantee.
Specifications
Built to spec.
| Gauge | 16 AWG |
| Conductor | Oxygen-free copper (OFC) |
| Conductors | 4-conductor |
| Jacket rating | CL2 — rated for in-wall and in-ceiling runs |
| Length | 100 Feet, 250 Feet |
| Brand | GEARit |
| Warranty | Lifetime warranty |
Best for
When to choose 16 AWG
Bookshelf speakers and rear surrounds with runs under 50 ft.
- Safe to run inside walls and ceilings
- Pure copper for lower resistance
Complete the install
Pairs well with
13% off
10% off
GEARit
GEARit - 12 AWG In Wall Speaker Wire - CL2 Rated - Oxygen Free Copper (OFC), White
3 options
18% off
GEARit
GEARit - 14 AWG OFC 14/2 Outdoor Speaker Wire UL CL3 Direct Burial Black
4 options
Buyer's guide
Not sure about gauge? Two questions decide it.
How long is the run and how much power the amp pushes. Use the picker, then choose the conductor.
1Pick the gauge
Gauge picker
Tell us the run. We'll size the wire.
·Or use the reference table
| Gauge | Best run length | Best for | Shop |
|---|---|---|---|
| 10 AWG | 150 ft+ | Subwoofers, whole-home, large outdoor | Shop → |
| 12 AWG | 100–150 ft | High-power amps, long runs | Shop → |
| 14 AWG | 50–100 ft | Home theater 5.1 / 7.1 | Shop → |
| 16 AWG | Under 50 ft | Bookshelf, rear surrounds | Shop → |
| 18 AWG | Short jumpers | Low-power, jumpers | Shop → |
- CL2 jacket for in-wall and in-ceiling runs
- CL3 jacket for outdoor or direct-burial runs
- Marine wire for boats, docks and salt air
- Step up one gauge if you're unsure
2Pick the conductor
OFC vs CCA: which conductor fits your install?
Longer runs to surrounds and higher receiver power benefit from pure copper's lower resistance.
Shop OFC speaker wire| Spec | OFC · Oxygen-free copperPick | CCA · Copper-clad aluminumPick |
|---|---|---|
| Conductor | Solid copper strands | Aluminum core, copper skin |
| Resistance | Lowest | Higher than OFC |
| Best run length | Long runs, 100 ft+ | Under 50 ft |
| Power handling | Any amp | Low to mid power |
| Best for | Home theater · in-wall · outdoor | Budget DIY · car audio |
FAQ
Speaker wire questions, answered.
How do I choose the right length?
Measure the path the wire will actually follow, around furniture, along baseboards or through walls, then add 10–15% for slack. If you're between two lengths, go longer.
What gauge speaker wire do I need?
Under 50 ft, 16 AWG is fine. For 50–100 ft or higher-power amps, step up to 14 AWG. For runs over 100 ft or subwoofers, use 12 AWG. In-wall installs need a CL2 or CL3 jacket.
Can I run this speaker wire in walls?
Wire rated CL2 or CL3 is made for in-wall and in-ceiling installation. Check the rating in the specs above and on the jacket.
Is OFC better than CCA?
Oxygen-free copper has lower resistance than copper-clad aluminum, which matters most on long runs and at higher power. CCA is a budget option for short indoor runs.

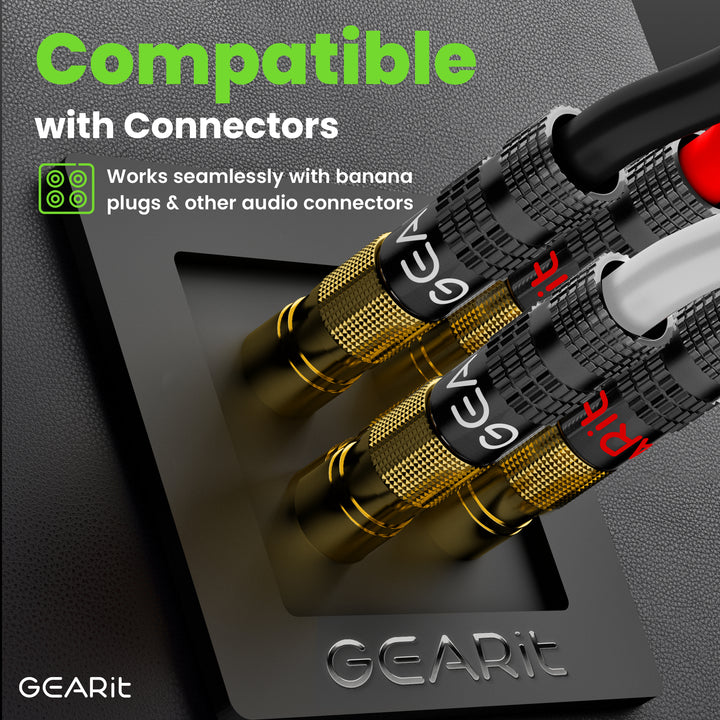

Do I need banana plugs?
No. Bare wire works on any speaker terminal. Banana plugs make swaps faster and prevent fraying.
