Choose Your Kit
Wire and accessories, with optional crimper and cutter
SKU: GI-GRD-8G-CC-LGS-BR-25F
| Brand | GEARit |
|---|---|
| Gauge | 8 AWG |
| Kit | Wire + Lugs & Heat Shrink |
| Wire Length | 25 ft Red + 25 ft Black |
| Conductor | Copper Clad Aluminum (CCA), Stranded |
| Jacket | 105°C-rated PVC, Red and Black |
| Lugs | Annealed Bare Copper; 1/4, 5/16 and 3/8 inch holes (5/16 and 3/8 inch for 1/0 AWG) |
| Heat Shrink | 3:1 Adhesive-Lined Dual-Wall, 20 pieces (10 red, 10 black) |
| Compatible Uses | Amplifiers, Batteries, Winches, Inverters, RV Projects |
on all US orders
reach out to us within 30 days
100% Money Back Guarantee
GEARit CCA Amp Wiring Kit puts everything for a custom power and ground run in one box. Each kit starts with 25 ft of red and 25 ft of black copper clad aluminum wire, adds heavy-duty copper lugs and adhesive-lined 3:1 heat shrink, and the Complete Kit adds a hex-die lug crimper and a 9-inch leverage cable cutter so you can cut, strip, crimp and seal without buying tools separately. Available in 1/0, 4 and 8 gauge.
Three gauges for amplifiers, batteries, winches, inverters and RV projects. Choose the gauge that fits your power and ground run.

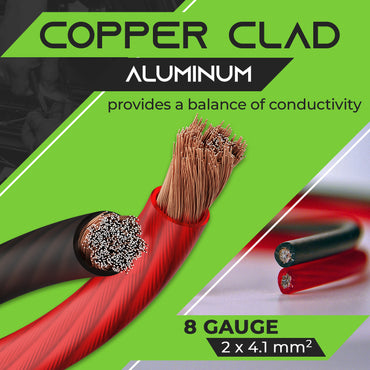

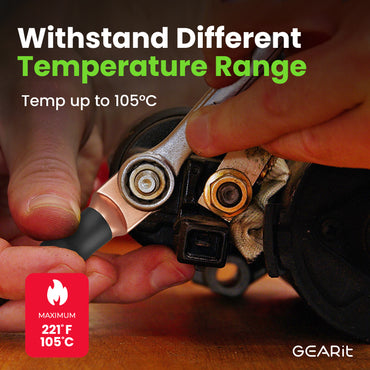

Stranded copper clad aluminum wire with a 105°C-rated PVC jacket. Red and black jackets keep power and ground easy to identify.

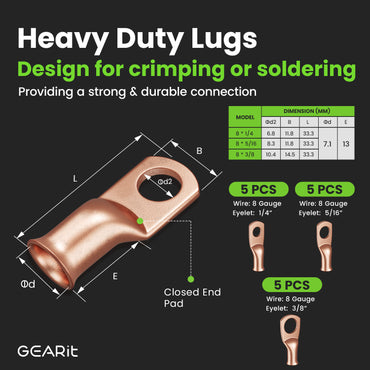

Annealed bare copper lugs with a corrosion-resistant finish and closed-end pads. Crimp or solder, in 1/4", 5/16" and 3/8" hole sizes (5/16" and 3/8" for 1/0 AWG).

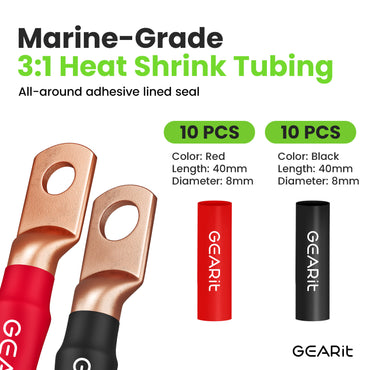

20 pieces of dual-wall, adhesive-lined heat shrink (10 red, 10 black) shrink to 1/3 of their diameter for a watertight, vibration-resistant seal.
Works with: amplifiers, batteries, winches, inverters and RV projects.
In the box: Wire + Lugs & Heat Shrink: 25 ft red + 25 ft black CCA wire, copper lugs sized to the gauge (10 lugs for 1/0 AWG; 15 lugs for 4 and 8 AWG), and 20 pieces of 3:1 adhesive-lined heat shrink (10 red, 10 black). Complete Kit with Crimper & Cutter: everything above, plus a carbon-steel lug crimper with rotating hex dies for 8, 6, 4, 2, 1 and 1/0 AWG and a 9-inch chrome vanadium leverage cutter rated for 4/0 aluminum and 2/0 soft copper.
Wire and accessories, with optional crimper and cutter
Every kit includes 25 ft each of red and black CCA wire, gauge-matched copper lugs and 20 pieces of heat shrink. Choose the Complete Kit to add a hex-die lug crimper and 9-inch leverage cable cutter. Tools are included only with the Complete Kit.
Factory-grade terminations in three steps
Cut and strip the jacket cleanly with the leverage cutter, seat the stripped wire in a copper lug and compress it with the ratcheting crimper, then slide the 3:1 adhesive-lined heat shrink over the joint and apply heat for a sealed, vibration-proof connection.
Choose 1/0, 4 or 8 AWG wire with matching lugs
Each kit pairs stranded CCA wire with matching copper lugs. The 1/0 AWG kits contain 10 lugs with 5/16" and 3/8" holes. The 4 and 8 AWG kits contain 15 lugs with 1/4", 5/16" and 3/8" holes. Each kit also includes 10 red and 10 black pieces of 3:1 adhesive-lined heat shrink.
Wire + Lugs & Heat Shrink: 25 ft red + 25 ft black CCA wire, copper lugs sized to the gauge (10 lugs for 1/0 AWG; 15 lugs for 4 and 8 AWG), and 20 pieces of 3:1 adhesive-lined heat shrink (10 red, 10 black). Complete Kit with Crimper & Cutter: everything above, plus a carbon-steel lug crimper with rotating hex dies for 8, 6, 4, 2, 1 and 1/0 AWG and a 9-inch chrome vanadium leverage cutter rated for 4/0 aluminum and 2/0 soft copper.

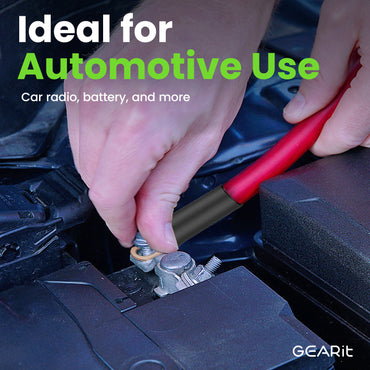

Car Audio — Perfect for subwoofers needing clean power and deep bass.
RV/Marine — Connect battery banks to inverters and chargers in mobile setups.
Off-Grid Solar — For 12V/24V systems, linking panels, controllers, and batteries.
Heavy Equipment — Reliable for tractors, forklifts, and construction circuits.
Extremely flexible 1/0 cable. This kit has everything I needed to make power connections for a removable UTV winch. I love that I can easily roll up the cable when not in use. The heat shrink is dual layer with the adhesive layer that creates waterproof connections. So impressed by the heat shrink I bought more separately.
Bought this kit to add to my charging system on my 55' Chevy it was a great help having the cable cutter and the crimp tool, the wire was of high quality and easy to work with, I would recommend this to anyone that needs to add or replace battery cables.
Nice thick cable. Insulation seems think enough. Lugs and heat shrink feel like high quality. Only complaint I have right now is the crimping tool. I bought 1/0 cable and had to use the 1 gauge dies to crimp the lug tight enough.I'll be using it to power a 12000# badlands winch. Will.see how it handle that.
Was just the right amount of wire for my project, it came quick and complete with more terminals than I needed. Had some trouble getting the terminals to crimp properly the first try but it could have been user error. Heat shrink provided in the kit is a nice quality as well.
Loved this item, took me about 1/2 hour to make this because the package had everything i needed.
What a great deal for two very useful tools as well as the crimp ends, shrink tubing and wire! The wire cutter is plenty sharp and durable and the crimping tool has adjustable jaws allowing for crimping a variety of wire sizes. For me, crimping a pile of custom-length wires comes up frequently when wiring in house and start batteries as well as for wiring electric over hydraulic pumps and master on-off switches.These are nice tools and work well!
The wire did not have any rating for maximum voltage as most other large wires have. Many wires of this size are rated for 600 volts. The writing on the wire stated that it was rated to a temperature 80C. Many other wires of this type are rated to 105C. On the positive side, the wire is very flexible.The cutters easily cut the 0-gauge wire. With the crimping tool set to 0-gauge, it did not securely crimp the lug to the wire – I could easily pull the lug off the wire. I had to re-crimp with the tool set to 1-gauge. That did the trick. I also did a second crimp next to the first crimp to make a better connection.The ease of using the crimper on the large 0-gauge wire was good if I put one handle on the floor. I am not strong enough to just use both hands to crimp this size of wire.
This GearIT 0 Gauge power and ground wiring set is perfect for retrofitting or upgrading your heavy power and ground wires in your vehicle. Whether you are upgrading your sounds system or just refurbishing old ground connections, this kit gives you 2 -25ft spools of 0 gauge wiring (1 spool of power, and 1 spool of ground), a bunch of crimp terminals, heat shrink, cutter, and hd crimper. Everything you need all in one convenient package.
PROS: Nice kit for fast repairs for add on current feeds, vary flexible well insulated color coded wire, includes various well marked crimp on eyelets, cutter, and crimping tool. CONS: Not solid copper, red, but, no black wire (black is normally ground, not brown, but whatever), not so easy to solder (plan on crimping only), cutter works but has cheap rough machined surfaces, crimper works, but, adjustable crimps don't align perfectly and tool probably won't hold up to daily use (but will certainly work for all the parts included, eyelet inputs seems a bit oversized for the wire which seems a bit undersized for 8 gauge. Overall good value and gets the job done.
Instead of giving a verbal explosion - I'll try to give y'all more of a photo review. Every picture tells a story don't it? I'll start with a little play by play: It's a fly ball - it's going - it's going, deep to left field, it's going.... IT's GoNE - Home Run!!! This crimper WorKs GReaT! It provides an excellent mechanical bond (See photo) I cut it open. Spinning die wheels on tool accommodate 6 sizes of cable - 8AWG - 1/0AWG. Unfortunately, I own about 200' of 2/0. Maybe it'll shrink if I put it in the dryer. You can usually tell what a company thinks of their product by how it's wrapped (see photos). The cutter is super – See 2/0 cable in photo - Marketing says, "cuts 2/0 cable effortlessly." It's not effortlessly, but it's close enough they'll get no complaints from me. Say is that a pink elephant sitting over there left of the visitors dug out? What's it say on his T-Shirt? Says CCA I think. What's that mean? Means he's only an elephant on the outside - inside he identifies as a walrus. Yep 50' of copper coated aluminum wire in my shop - The weak link in this kit. Aluminum wire has it's Place - Like power lines. I prefer not to have it mixed with my stuff though. They're are no markings on the insulation, but the insulation is a bit transparent - unlike any other insulation I have or have seen. Hope I remember the pink elephant wears a see through over coat. It is 50 foot of 8 AWG Aluminum - so, like 50 foot of 12 gauge copper; I'll do something with. Far as wire goes though - it is pretty nice - multi multi stranded and super pliable. I Was able to tie it in a knot like it was a length of cotton cord. (See Photo). I really like this kit, even if it doesn't do my 2/0, and I'm not going to throw the pink elephant out with the walrus. So, 5 Stars for The GearIT All-in-One Lug Crimping Kit with 50 feet of Walrus Covered in Pink Elephant.Hey – least I tried. Thanks for Reading – Have an Incredible Life!
I replaced some 4awg pure copper with these. The 5 foot 4awg was limiting one of my batteries to 25 amps but it's doing 80A now.If you aren't limited for space, 0 gauge CCA is cheaper per foot than a similar ampacity 2 gauge pure copper. Plus aluminum is light so it's thick but not hard to manage.The lugs were solid and sized appropriately to get a very strong connection.
This is 4 gauge cca wire. It is flexible and has a nice thick sheathing that feels as durable as you would expect. The ends are nice and fit correctly on the wire so they can be properly crimped and the wire can be easily used. Exactly what I expected it would be.
This is good quality CCA wire. The insulation is very thick and the wire strands are very thin, so you have to be very careful when stripping it. Even though the insulation is very thick, it still is quite flexible and easy to route in tight spaces. The wire is gauged properly and fits the provided lugs well. The lugs are thick quality lugs. They are harder to crimp since they are thicker, but they hold very well.
This wire is of very good quality and sized properly. The insulation is very thick and the wire strands are quite thin, so you need to be very careful when stripping it. It is nice and flexible, so it is easy to route it where you want it. The provided lugs are good quality thick metal. They hold well when properly crimped.
The GEARit CCA Amp Wiring Kit is designed for custom power and ground runs, suitable for amplifiers, batteries, winches, and RV projects. It includes high-quality copper lugs and heat shrink for secure connections.
This product is ideal for automotive enthusiasts, DIYers, and professionals working on electrical wiring for amplifiers, batteries, winches, inverters, and RV projects.
The GEARit CCA Amp Wiring Kit is available in 1/0, 4, and 8 AWG to suit different needs.
Yes, this wiring kit is suitable for RV projects, providing reliable connections for power and ground.
The Complete Kit includes a carbon-steel lug crimper and a chrome vanadium leverage cutter for added convenience.
Yes, the adhesive-lined heat shrink provides a watertight and vibration-resistant seal.
The kit includes 25 ft of red and 25 ft of black wire for your projects.
When choosing a wiring kit, consider the gauge needed for your specific application, the quality of materials, and whether you need additional tools for installation.
