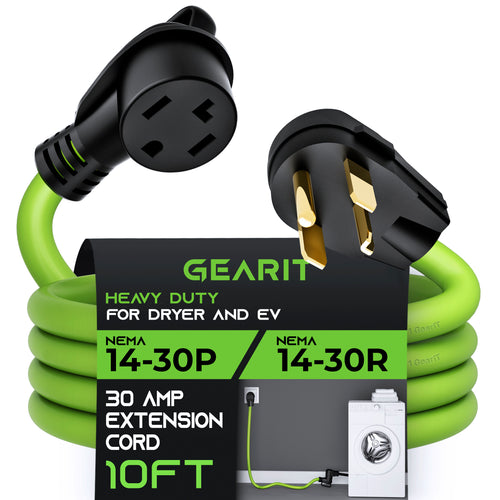

Power up with GearIT’s top-rated NEMA 14-50 and 14-30 cables:
Shop GearIT now for reliable, high-performance power solutions! ⚡🔌
When it comes to powering appliances and electric vehicles (EVs), the type of outlet and plug you use is crucial. Two common types are the NEMA 14-50 and NEMA 14-30. Let’s dive into the details and differences between these two, and explore the situations where each would be used.
NEMA 14-50 Outlets and Plugs
NEMA 14-50 outlets are high-capacity power solutions designed for heavy-duty use. They are rated for 50 amps and 240 volts, providing up to 12,000 watts of power. This makes them ideal for applications that require a lot of power, such as:
- ● Electric Ranges: Often found in kitchens, these outlets can handle the high power demands of modern electric stoves.
- ● RV Hookups: Recreational vehicles that need a lot of power for onboard appliances typically use NEMA 14-50 outlets.
- ● EV Charging: For faster charging times, EV owners might install a NEMA 14-50 outlet at home.
- ● Welding Equipment: In workshops or garages, these outlets can power high-demand welding machines.
The NEMA 14-50 plug has four prongs: two hot wires, one neutral, and one ground. The hot wires carry the current, the neutral provides a return path, and the ground ensures safety.
NEMA 14-30 Outlets and Plugs
NEMA 14-30 outlets are slightly less powerful, rated for 30 amps and 240 volts, and can provide up to 7,200 watts of power. They are commonly used in residential settings for:
- ● Electric Dryers: Most modern homes have a NEMA 14-30 outlet in the laundry room to power clothes dryers.
- ● Older EV Charging: Some older or lower-powered EVs can be charged using a NEMA 14-30, though it will be slower than with a NEMA 14-50.
- ● Backup Generators: For homes with backup power systems, a NEMA 14-30 can be used to connect to a portable generator.
The NEMA 14-30 also has four prongs, but with one key difference: the neutral prong is L-shaped. This helps prevent the plug from being inserted into the wrong type of outlet.
Key Differences
The main differences between the NEMA 14-50 and NEMA 14-30 include:
- ● Amperage: NEMA 14-50 is rated for 50 amps, while NEMA 14-30 is rated for 30 amps.
- ● Power Output: NEMA 14-50 can deliver more power, making it suitable for more demanding applications.
- ● Physical Appearance: The neutral prong on a NEMA 14-30 plug is L-shaped, whereas on a NEMA 14-50, all prongs are I-shaped.
Check Your Power Requirements
Choosing the right outlet and plug depends on the power requirements of your appliances or EV. The NEMA 14-50 offers more power and is suited for heavy-duty use, while the NEMA 14-30 is adequate for most residential appliances and some EVs. Always consult with a licensed electrician to ensure the correct and safe installation of these outlets.
