Solar panel wiring is how you connect solar panels to create a working solar power system that turns sunlight into electricity.
It’s an essential step if you’re looking to use renewable energy for your home, RV, or camper. The way you wire the panels, either in series or parallel, changes the system's voltage and current, which affects how much power you’ll get.
Using the right solar panel connectors, like MC4 connectors, ensures a secure and efficient connection between panels.
Learning the basics of wiring and connectors helps you make smarter choices to maximize your solar setup. Let’s explore how you can optimize your solar energy system for the best results.
What is Solar Panel Wiring and Why is it Important?
Solar panel wiring connects photovoltaic (PV) modules to each other and the system's components, such as the inverter and battery storage. This wiring is essential for conducting electricity generated by solar panels to your home or business.
Role of Solar Panel Wiring:
-
Connection: It creates electrical pathways between panels and other components.
-
Optimization: Wiring influences system performance and efficiency, ensuring energy flows smoothly without unnecessary losses.
Correct wiring is vital not only for helping your system work well but also for keeping it safe. Properly installed wiring reduces the risk of electrical faults that could damage equipment or be dangerous.
Importance for Energy Efficiency:
-
Ensures maximum energy transfer.
-
Minimizes energy loss during transmission.
-
Supports the stability of the energy supply.
Importance for Safety:
-
Reduces the risk of electrical fires.
-
Protects equipment from damage.
-
Keeps users safe from electrical shocks.
Incorrect wiring can lead to serious outcomes such as damaged components or even life-threatening situations. For instance, wiring the panels incorrectly can alter the total voltage and current, which impacts the entire system.
Types of Solar Panel Wiring Configurations
Understanding the wiring configurations for solar panels is essential for optimizing their performance. This involves series and parallel wiring, each with unique characteristics that affect voltage and current. Picking the right one depends on your specific energy needs and setup.
Series Wiring
In series wiring, solar panels are connected end-to-end. You connect the positive terminal of one panel to the negative terminal of the next. This increases the total voltage while keeping the current the same as that of a single panel.
For example, if you have four panels each with 12 volts, the total voltage will be 48 volts.
Advantages ✅:
-
Higher voltage allows for efficient transmission over long distances.
-
Compatible with high-voltage systems, such as grid-tied inverters.
Disadvantages ❌:
-
Shading on one panel reduces the performance of the entire series.
-
Requires proper voltage matching with inverters and charge controllers.
Parallel Wiring
Parallel wiring, on the other hand, involves connecting all the positive terminals together and all the negative terminals together. This configuration increases the total current while the voltage remains that of a single panel. For instance, connecting four 12-volt panels with 5 amps each results in a total current of 20 amps.
Advantages ✅:
-
Better performance in partial shading, as each panel operates independently.
-
Facilitates future expansion without drastically altering the system setup.
Disadvantages ❌:
-
Requires thicker cables due to higher current, which can be costly.
-
Lower voltage may need more equipment to convert for household usage or grid connection.
Series Vs. Parallel Wiring
Choosing between series and parallel wiring involves considering factors like shading, distance, and voltage needs. Series wiring is ideal for installations where distance is a factor and shading is minimal. It's also suited for high-voltage inverter systems.
Parallel wiring excels in situations where panels may experience partial shading, as each panel functions more independently. This configuration is useful for setups that prioritize reliability and expansion.
Combining both types can be effective too. Known as a hybrid model, it helps in balancing voltage and current to fit specific operational needs. Proper planning ensures optimal performance, regardless of configuration choice.

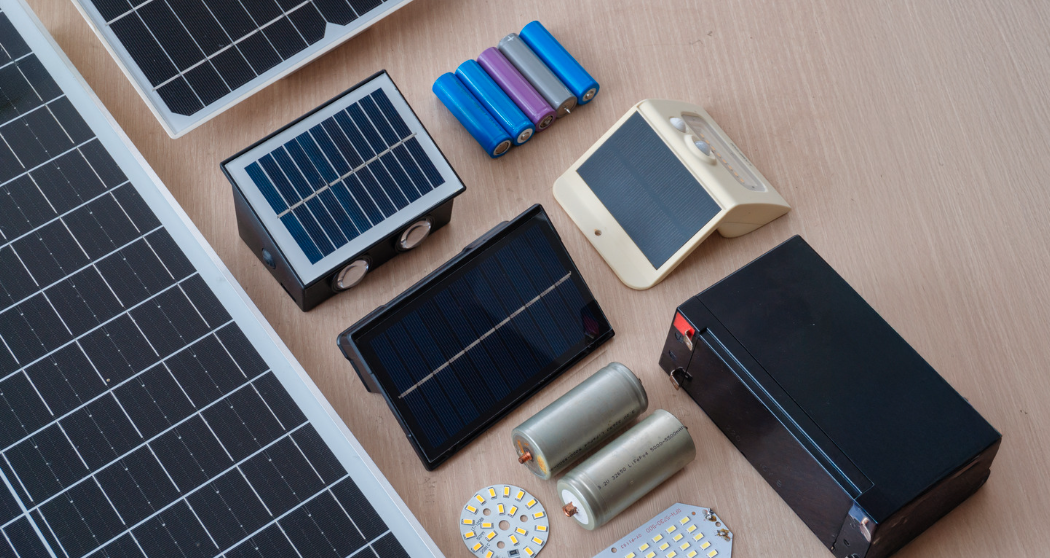

Basic Components of a Solar Panel System
-
Solar Panels are the first component you will encounter. They absorb sunlight and convert it into electricity. This is done through numerous solar cells connected together. They are typically mounted on rooftops or open areas to capture as much sunlight as possible.
-
The Charge Controller is an important device that regulates the electricity coming from the solar panels. It ensures that the battery bank is charged safely by preventing overcharging and managing power intake. This helps extend the life of the batteries and keeps the system working efficiently.
-
A Battery Bank stores the electricity generated by the solar panels. This is essential for providing power when there is no sunlight, like at night or during cloudy days. Most systems use deep-cycle batteries that are specifically designed for long-term energy storage.
-
An Inverter converts the direct current (DC) electricity stored in the battery bank into alternating current (AC) electricity. AC is the type of electricity used by most household appliances. Without an inverter, the stored energy would not be usable for typical home devices.
Having a clear understanding of these components will help you set up a solar panel system that meets your energy needs efficiently.
Each part plays a critical role in harnessing, storing, and using solar energy effectively.
Tools and Materials Needed for Solar Panel Wiring
When wiring solar panels, you need the right tools and materials to ensure a safe and efficient setup.
Essential Tools:
-
Wire Cutters: Necessary for trimming wires to the correct length.
-
Crimpers: Used for attaching connectors to wire ends.
-
Multimeter: Helps to measure voltage, current, and resistance, ensuring everything is working correctly.
Essential Materials:
-
Connectors: MC4 connectors are commonly used to connect solar panels securely.
-
Cables: Choose durable and weather-resistant cables that can handle power flow between panels and inverters.
-
Junction Boxes: These are used to group multiple cables together for a tidy and organized setup.
Recommendations:
Invest in high-quality tools and materials. Reliable wire cutters and crimpers ensure precise work, while a digital multimeter provides accurate readings. Look for connectors and cables that are specifically designed for solar installations to handle outdoor conditions effectively.
Make sure all components meet your system’s power and safety requirements. This guarantees long-term performance and reliability in your solar setup.
✨ Featured Products:

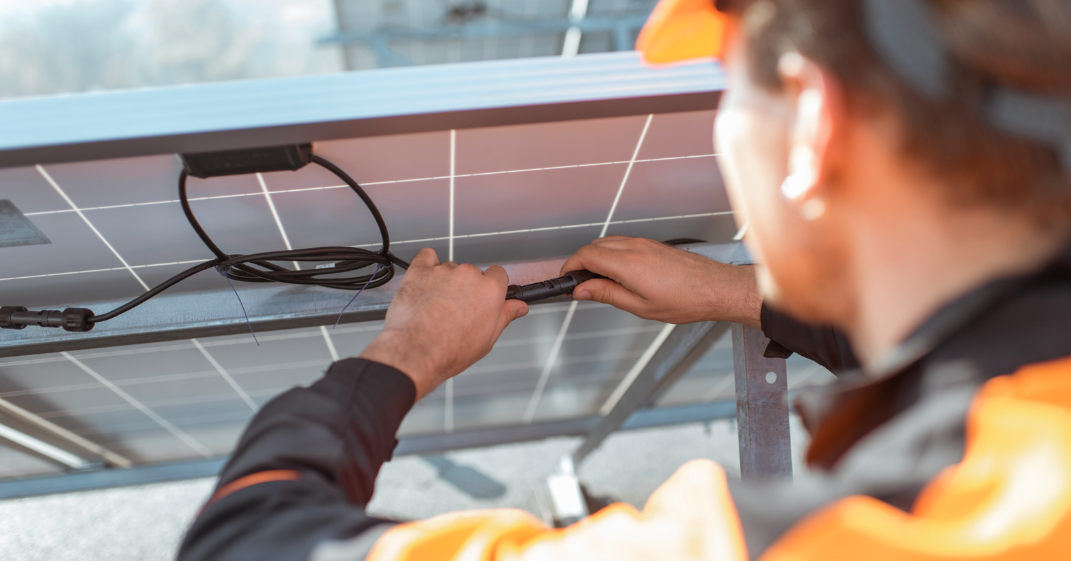

How to Wire Solar Panels in Series
Connecting solar panels in series means linking them to increase the voltage while keeping the current the same. This setup can be useful if you need to match the voltage requirement of your inverter or charge controller.
Steps to Wire Solar Panels in Series:
-
Check Safety Precautions: Wear protective gear and ensure the panels are not exposed to sunlight when connecting them.
-
Identify Connections: Locate the positive (usually red) and negative (usually black) terminals on each panel.
-
Connect Panels:
-
Join the positive terminal of the first panel to the negative terminal of the second panel.
-
Continue this pattern for all panels in the series.
-
Inspect Connections: Make sure all connections are secure and there are no exposed wires.
-
Test the System: Measure the voltage across the unconnected ends to ensure it matches the expected output.
Combining panels in series is beneficial for systems with MPPT charge controllers, as higher voltage can reduce power loss over long distances.
Each series string will leave you with one positive and one negative terminal at either end.
How to Wire Solar Panels in Parallel
Wiring solar panels in parallel is a method used to increase the current capacity of your solar system without changing the voltage. By connecting solar panels this way, you ensure your system can handle more power output. Here's how you can do it:
-
Gather Materials: You will need solar panels, MC4 connectors, branch connectors, and cables.
-
Safety First: Make sure the solar panels are not generating electricity while you work. Cover them or work in low light conditions.
-
Set Up Panels: Position your solar panels where they will receive the most sunlight.
-
Connect the Positive Terminals: Use branch connectors to join all the positive MC4 connectors from each panel.
-
Connect the Negative Terminals: Like the positive terminals, use a branch connector to connect all the negative MC4 connectors.
-
Check Connections: Ensure all connections are secure and tight to avoid any loose ends.
-
Test the System: Once all connections are made, uncover the panels and use a multimeter to check that the current is as expected.
Each panel should maintain the same voltage, like in a single-panel setup. Connecting in parallel allows you to add more panels later on if needed.
Solar Panel Wiring Safety Tips
Working with solar panel wiring involves risks like electrocution and fire hazards. Ensuring safety during installation is crucial to protect yourself and your property.
-
Turn Off the Power Source: Always switch off the power supply before beginning any work on the wiring. This simple step can prevent accidental shocks.
-
Use Insulated Tools: When handling solar panel wiring, make sure to use tools with insulated grips. This minimizes the risk of electric shock.
-
Wear Protective Gear: Equip yourself with insulating gloves and safety goggles. These protect you from potential electrical hazards and flying debris.
-
Avoid Direct Sunlight: When wiring, keep solar panels out of direct sunlight to reduce the risk of electric shocks. Shade or cover them if possible.
-
Perform Regular Inspections: Check for any signs of damage, wear, or corrosion on the wiring and components regularly. Early detection can prevent major safety issues.
-
Check Connections: Make sure all connections are secure and properly insulated. Loose or exposed connections can pose serious risks.
-
Follow Installation Guidelines: Adhering to recommended solar installation tips ensures a safe and efficient setup.
By following these tips, you can safely manage solar panel wiring and enjoy the benefits of solar energy without unnecessary risks.
Common Issues in Solar Panel Wiring and How to Fix Them
Solar panel wiring needs regular inspections to ensure your system works well. Common wiring issues can affect efficiency and safety.
Loose Connections 📌
Loose connections can occur due to vibration or temperature changes. Regularly check and tighten connections to prevent power loss or sparks. If unsure, seek professional help.
Faulty Inverters 📌
Inverters convert solar energy into usable electricity. Faulty inverters may cause system failures. Check connections and ensure inverters are compatible. If problems persist, consider professional diagnosis.
Overloading 📌
Overloading happens when too many devices connect to a single inverter. This can damage wiring and reduce efficiency. Avoid overloading by balancing connections and using appropriate inverters for your system size.
Troubleshooting Tips
-
Inspect wires for wear and damage.
-
Use a multimeter to check voltage and current flow.
-
Replace frayed or broken wires.
Professional help is recommended if you encounter frequent issues or complex problems, ensuring your system remains safe and efficient.
Regular maintenance and quick action on issues can save time and money, allowing your solar panels to perform their best.
Frequently Asked Questions
When wiring solar panels, you need to understand the different connection methods and materials. Knowing whether to use series or parallel connections and choosing the right type of cable are essential.
What wiring is required for solar panels?
For solar panels, you will need solar cables, which are designed to withstand outdoor conditions and UV exposure. These cables typically have weather-resistant insulation and are rated for the voltage and current of your solar system. Additionally, you’ll need connectors like MC4 connectors to ensure a secure and waterproof connection.
How to connect 12V solar panels together?
To connect 12V solar panels together, you can either wire them in series or parallel. Wiring in series involves connecting the positive terminal of one panel to the negative terminal of the next, increasing the voltage. Wiring in parallel involves connecting all positive terminals together and all negative terminals together, increasing the current while keeping the voltage the same.
Is it better to wire solar panels in series or parallel?
Whether to wire solar panels in series or parallel depends on your specific needs. Wiring in series increases the voltage, which can be useful for reducing power loss over long distances. Wiring in parallel increases the current, which can be beneficial for systems with lower voltage requirements. Assess your system’s requirements to make the best choice.
How are solar panels wired into a house?
Solar panels are wired into a house through an inverter, which converts the DC electricity generated by the panels into AC electricity used by household appliances. The inverter is connected to the home's electrical panel, allowing the solar power to be distributed throughout the house. Safety devices like circuit breakers and fuses are also installed to protect the system.
What is the best wire for solar panels?
The best wire for solar panels is typically a solar-rated PV wire or a USE-2 wire. These wires are designed to handle the high voltage and current of solar energy systems and are resistant to UV radiation and extreme weather conditions. They ensure safe and efficient transmission of electricity from the panels to the inverter and other components.
Can I use normal cable for solar panels?
Using normal cable for solar panels is not recommended as they may not be designed to handle the specific demands of solar energy systems. Normal cables may lack the necessary insulation and UV resistance, which can lead to degradation and potential safety hazards. Always use cables specifically rated for solar applications to ensure safety and efficiency.
